6m Expandable Pod
The 6m Expandable Pod features a unique slide out design that extends the overall internal space whilst maintaining a manageable footprint for transport and installation purposes. Providing comfort and convenience this design also features a Kitchenette (stainless steel sink with upper and lower cabinets) and a Bathroom (separate shower and toilet with an external vanity and sink).
Manufactured with a galvanised structural steel chassis and fluorocarbon insulated walls design elements include a large aluminium framed double glazed entry door with curtains, LED downlights, awning windows with blind, flyscreens and power points.
The base of the pod features forklift pockets and rollers for easy manoeuvring and installation. Nine adjustable feet make leveling a breeze.
The 6m Expandable Pod features a unique slide out design that extends the overall internal space whilst maintaining a manageable footprint for transport and installation purposes. Providing comfort and convenience this design also features a Kitchenette (stainless steel sink with upper and lower cabinets) and a Bathroom (separate shower and toilet with an external vanity and sink).
6m Expandable PodProduct specifications.
Key Features
• TINTED DOUBLE-GLAZED DOORS
• AWNING WINDOWS WITH BLINDS & FLYSCREENS
• LED DOWNLIGHTS
• POWER POINTS & SAFETY SWITCH
• 15 AMP EXTERNAL POWER SOCKET
• READY FOR WATER & SEWERAGE
DIMENSIONS
-
Length: 5.85m | Width: 2.24m | Height: 2.48m | Expanded Width: 4.2m approx
-
Length: 5.75m | Expanded Width: 3.88m | Height: 2.16m
-
Approx. 17m
-
2100kg
EXTERNAL SPECIFICATIONS
-
Galvanised Steel Frame, Structural Steel Chassis Epoxy Painted
-
Fluorocarbon Composite Board
-
65mm Flame Retardant Board (EPS)
-
20mm Magnesium Composite Board
-
Aluminium Frame/Double Glazed 5mm Tinted Glass, Lockable
-
Awning Style Caravan Window with Flyscreen & Blind
-
Galvanised, Threaded Rod Feet with up to 50mm Adjustment
INTERNAL SPECIFICATIONS
-
3mm Anti-slip Vinyl
-
Flame retardant composite board
-
Bifold bathroom door, sliding shower door, chrome shower set, Fibreglass shower base with water proof PVC leather, FRP composite board walls, porcelain toilet with roll holder and brush, exhaust fan, floor drain
-
Porcelain Basin, Chrome Mixer, Soft Close Cabinet, 5mm Glass Mirror
-
Upper and lower cabinets, self-closing/soft close, pull out soft close drawers, stainless steel sink and stone bench top
ELECTRICAL SPECIFICATIONS
-
AS/NZS 3000 Standard, Purple non-migratory Cable
-
Waterproof 15 Amp Power Inlet Installed
-
Double GPO Power Sockets
-
LED Downlights, External Light
-
Compliant Safety Switch
Our Pods are individually inspected and tested by a qualified Electrician in our yard prior to delivery
PLUMBING (BATHROOM OPTION ONLY)
-
Hot and Cold-water Lines Pre-installed in Rear Wall of Pod
-
Shower, Bathroom Floor and Vanity on Flexi Drain Hose, Accessible from Underneath Pod
-
Connections Set in Rear Wall of Pod for Toilet
SHIPPING & HANDLING
-
2 x Pods per 40HQ Container
-
4 x Crane lifting points on Roof (in Steel Frame), Forklift Pockets in Base Frame

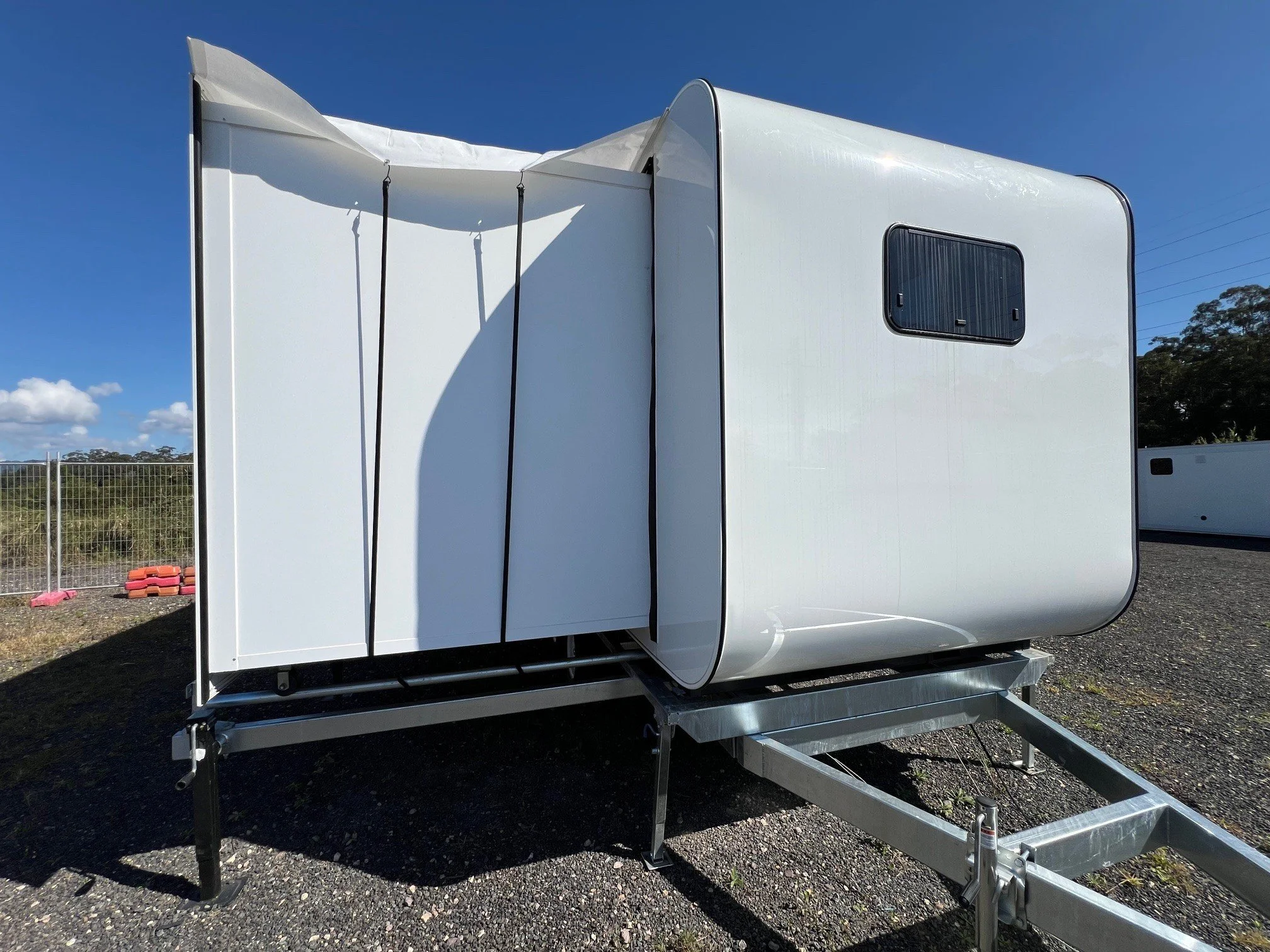

Why not make it mobile?Additional option of a purpose-built trailer.

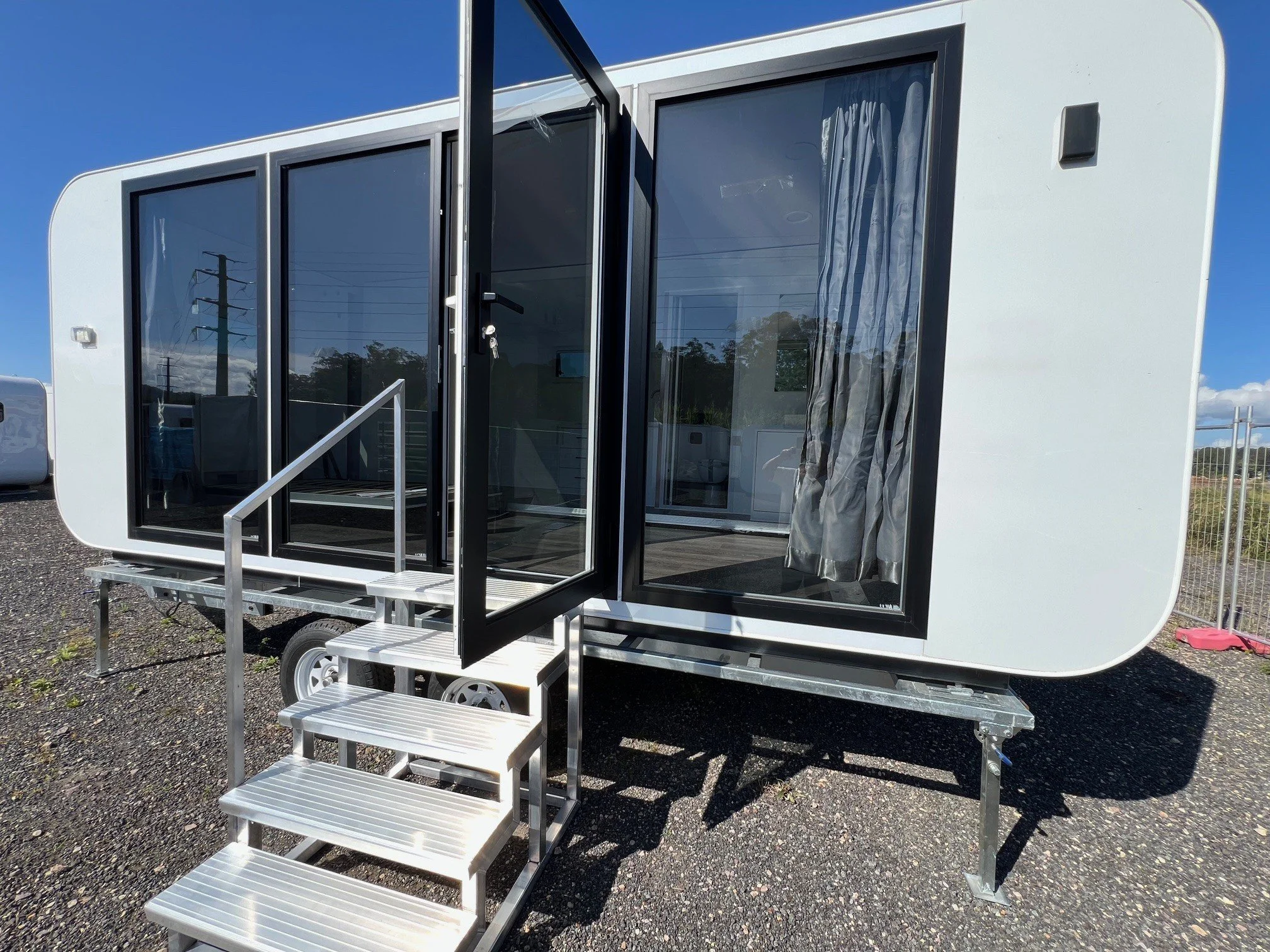

The addition of our purpose-built dual axle galvanised steel trailer for the 6m Pod officially turns these structures into a fully-mobile Tiny Home!
-
LED Tail Lights
Standard 7 Pin Plug
2100mm Wheel Base
Leaf Spring Suspension
Electric Brakes
14inch Tyres
895KG
Registration if required
When on-site 4 Stabiliser Jacks secure the trailer and 3 Outrigger Jacks support the Expanda function of our 6M Expanda Pod.
Standard 6M Expanda Pod and Trailer combined weight approx 3000kg.
